Part 2 – Measurement and Metadata Workflow

This part outlines the recommended step-by-step workflow for spectral data collection and metadata entry. Steps include references to protocol sections providing further details.

 1: Fig. 2.1. Diagram of IHerbSpec Protocol measurement and metadata workflow. Steps 1–4 describe the setup procedure and steps 5-9 describe the measurement sequence. For decisions regarding specimen tissue selection and using black backgrounds, see Part 6.

Step 1. Instrument Setup and Connection

  1. Plug in and turn on the instrument and light source.
    • Allow >15 minutes or follow manufacturer SOPs for lamp warm-up and sensor cool-down.
  2. Set up the computer and software, and connect the instrument following project SOPs.

Step 2. Prepare Bench and Specimens

  1. Select specimens and tissues for measurement (see Part 6; Fig. 6.1).
  2. Optionally, prepare filenames (see Part 3) in a separate document for copy–paste entry.
  3. Prepare bench with the following materials (see Fig. 2.2):
    • Required: white reference, black background
    • Recommended: benchtop black background, rulers for tissue coordinates, tweezers, laboratory gloves (see Part 5), annotation labels, archival envelopes (see Section 5.4).

Step 3. Start Session and Score Session Metadata

  1. Score Session Metadata (see Table 4.1):
    • Record sessionId datetime in the format YYYYMMDDHHMM (e.g., 202507011351).
    • Score required fields: projectID, sessionId, instrumentModel, opticalSetupDescription, measurementSettings, whiteReferenceDescription.
    • Score recommended fields: operator, lightSourceType, distanceTargetToSensor, lensFieldOfView, angleLightToSensor, measurementAreaDiameter.
  2. Create a storage folder for spectral data named with the sessionId (e.g., 202507011351) and set it as the destination folder for saving measurement files.

Step 4. Collect White and Black Session Measurements

  1. Take a white reference.
  2. Set simple filename for white target (see Table 3.1):
    • PI<projectId>_SN<sessionId>_TCW
      • Example: PIHUHcoca_SN202507011351_TCW
  3. Take one white target measurement.
  4. Set simple filename for black target:
    • PI<projectId>_SN<sessionId>_TCB
      • Example: PIHUHcoca_SN202507011351_TCB
  5. Take one black target measurement.
  6. Optionally, take target measurements of each calibrated reflectance standard (see Section 5.3) using filename conventions (Table 3.1):
    • PI<projectId>_SN<sessionId>_TC<targetClass><serial number>
      • Example: PIHUHcoca_SN202507011351_TCCW379902

Step 5. Tissue Measurement Sequence

  1. Take white reference at regular intervals (e.g., every 20 min.; see Section 1.2).
  2. Determine if tissue is suitable for measurement (see Part 6). If not, skip to the next specimen.
  3. Place specimen on benchtop black background with a ruler grid (recommended; see Fig. 4.2).
  4. Place black background behind target tissue (required whenever possible; see Fig. 2.2).
  5. Adaxial (AD) surface available:
    • Filename: SI<specimenId>_TC<targetClass>_TN<targetTissueId>
      • Example: SI02022418_TCAD_TN1
    • Take 3–5 adaxial measurements.
  6. Abaxial (AB) surface available:
    • Filename: SI<specimenId>_TC<targetClass>_TN<targetTissueId>
      • Example: SI02022418_TCAB_TN1
    • Take 3–5 abaxial measurements.
  7. If tissue measured on herbarium paper:
    • Filename: SI<specimenId>_TC<targetClass>_TN<targetTissueId>
      • Example: SI00746092_TCP_TN1
    • Take 1 paper measurement.
  8. Additional tissues (optional):
    • Select other tissue units with new targetTissueIds (recommended) and/or additional targetClass values (see Table 4.5).
    • Repeat tissue measurement steps.

Step 6. Quality Assessment, Quality Control

  1. Visually review each spectrum.
  2. Delete and repeat any measurement that appears anomalous.
  3. If unsure, take additional measurements.
  4. Check for and fix any filename errors before proceeding.

Step 7. Score Specimen and Tissue Metadata

  1. Score Specimen Metadata for every measurement (see Table 4.2):
    • Required: herbariumCode, specimenId
    • Recommended: scientificName, identificationQualifier, identifiedBy, dateIdentified, isTempControlled, annualTempMin, annualTempMax, isHumidityControlled, annualHumidityMin, annualHumidityMax
  2. Score Tissue Metadata for every measurement (see Table 4.3):
    • Required: backgroundClass, hasLowReflectanceBackground, targetClass, tissueDevelopmentalStage, hasBackgroundInMeasurement, hasGlue, hasNonGlueContamination, measurementIndex
    • Recommended: backgroundDescription, targetTissueId, percentBackgroundInMeasurement, measurementFlags, tissueNotes, tissueLocation, comment

Step 8. Specimen and Tissue Annotation

  1. Add project annotation label to sheet (recommended; see Section 5.4).
  2. Annotate loose tissues in packets/envelopes with targetTissueClass and targetTissueId labels; store in an envelope on the sheet (see Fig. 4.2).
  3. If applicable, annotate attached target tissues on herbarium sheet (unless already recorded in targetLocation).

Step 9. Move to Next Specimen

Repeat the sequence beginning at Step 5.

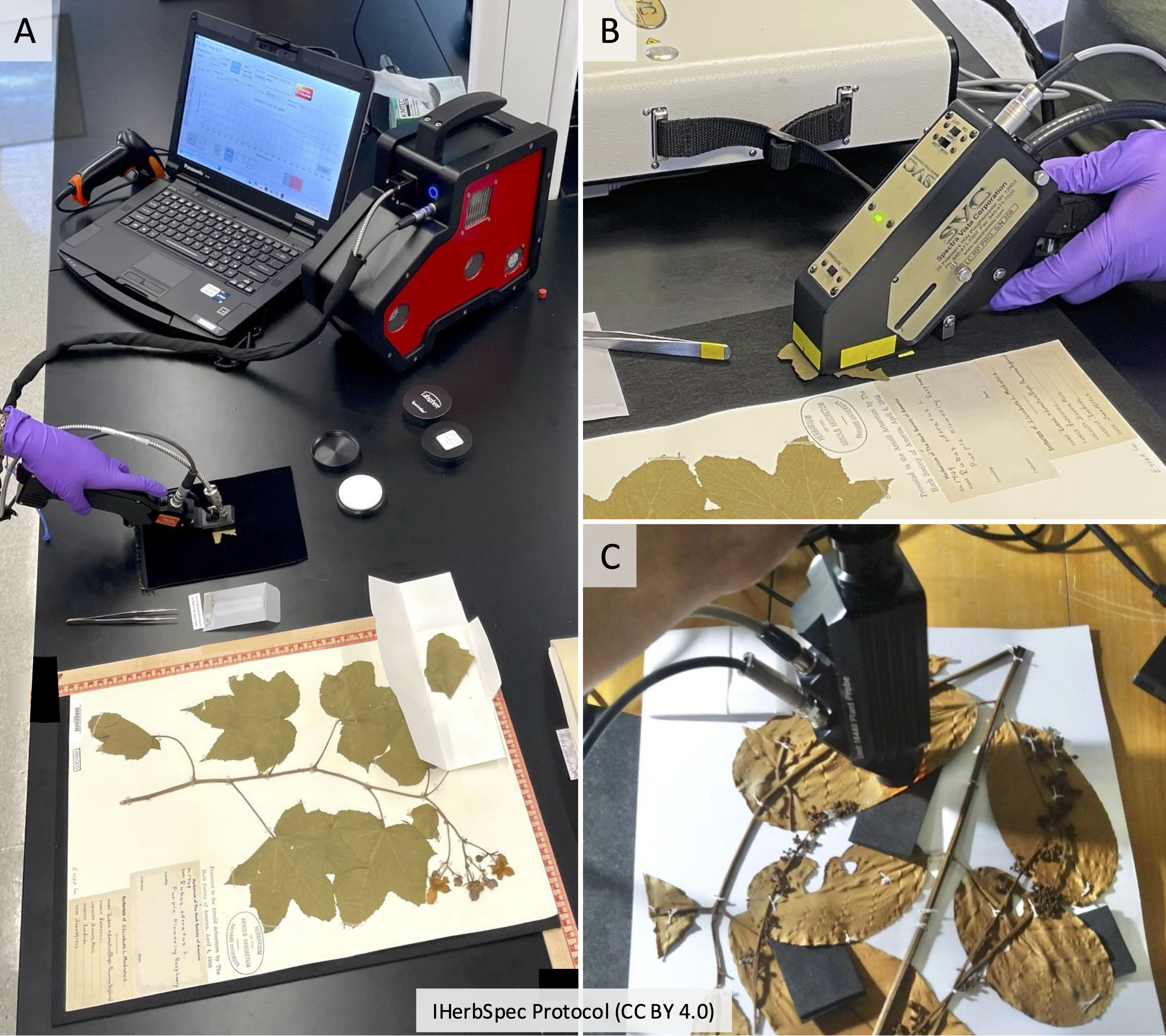

 2: Fig. 2.2. Reflectance spectroscopy bench setup and optical probe measurements. (A) Benchtop setup with Spectral Evolution NaturaSpec spectroradiometer with herbarium probe measuring a loose leaf fragment on black background. The setup also includes a barcode scanner, a laptop with data acquisition software and display for quality control and recording metadata, 2-inch diameter white and black calibrated reflectance standards, a 2-inch diameter Spectralon® white reference (top removed), a benchtop black background underneath the herbarium sheet, and a tissue annotation label stored in a glassine envelope inside the herbarium sheet packet. (B) Spectral Vista Corporation HR-1024i spectroradiometer and LC-RP Pro leaf clip (with clip removed) measuring a loose leaf fragment over a black background. (C) ASD optical probe measuring mounted tissue with black background slid underneath. Photos A and B by D.M. White; specimen from A: Herbarium of the Arnold Arboretum of Harvard University. Photo C by F. Durgante.
